M400 Agriculture
A high-capacity agricultural UAV platform built for spraying, spreading, precision application, and large-scale field operations.
//
Category
Agriculture
// Introduction
Built on real-world aerial application experience, the M400 Ag platform is engineered for large-scale agricultural operations requiring precision, efficiency, and reliability. Its heavy-lift architecture, modular spray systems, and mission-focused design enable consistent performance across demanding field conditions while supporting modern precision agriculture workflows.
Technical Specifications
Specification
Details
Dimensions (Folded)
1450 x 1150 x 1005 mm / 4 ft 9 in × 3 ft 9 in × 3 ft 4 in
Dimensions (Unfolded)
Propeller Folded: 2800 x 2800 x 1005 mm / 9 ft 2 in × 9 ft 2 in × 3 ft 4 in Propeller Expanded: 4400 x 4400 x 1005 mm / 14 ft 5 in × 14 ft 5 in × 3 ft 4 in
Weight (excluding batteries)
112 kg / 246.9 lb
Weight (including batteries)
161 kg / 354.9 lb
Maximum Take-off Weight
311 kg / 685.6 lb
Maximum Take-off Speed
45 mph
Hover Duration
Up to 20 mins
Liquid Tank Capacity
180 L / 48 US gal

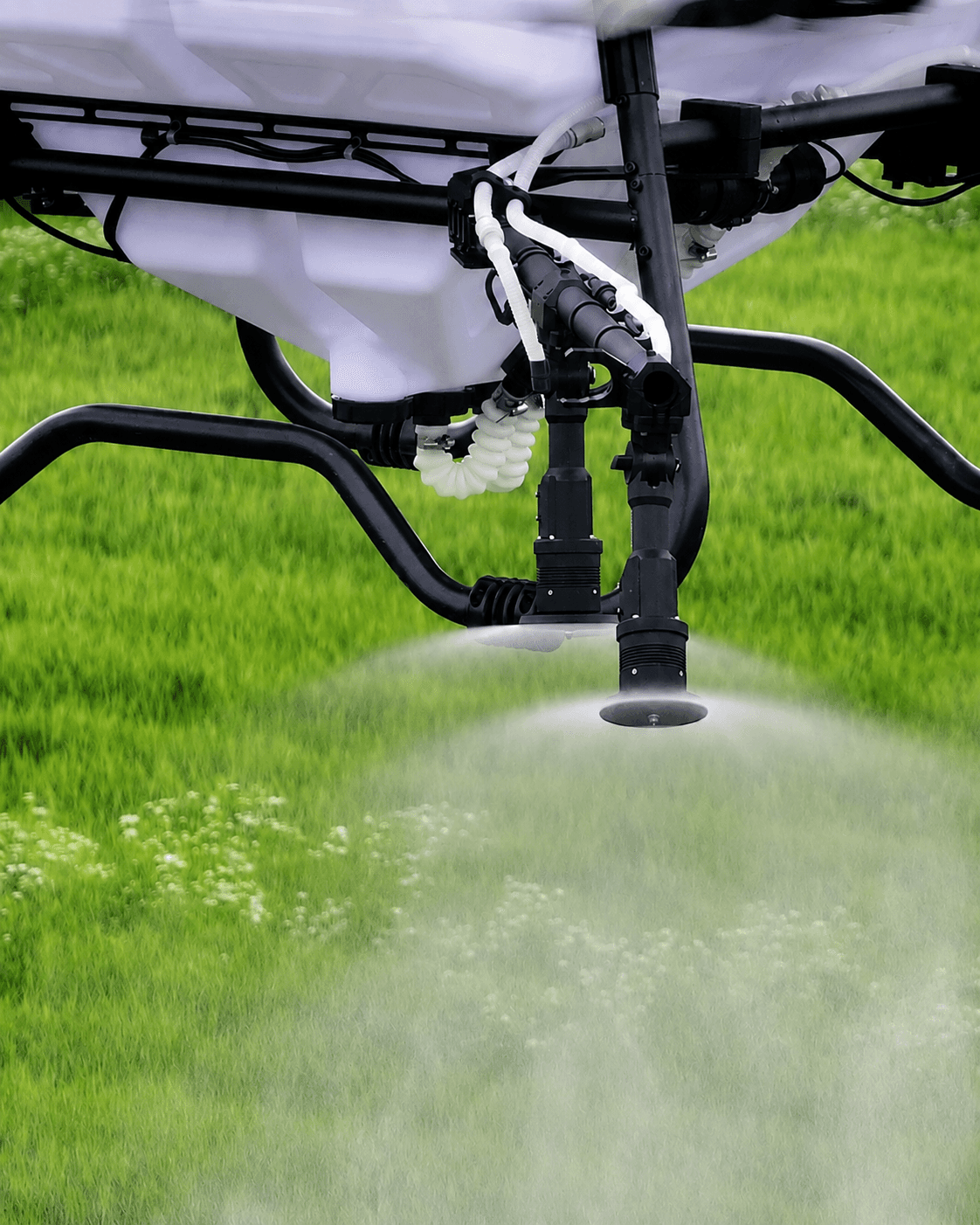

Nozzle Type
Centrifugal Nozzle
Spray Width
8 - 15 m
Atomizing Size
30 - 500 µm
Max Flow Rate
16 US gal/min
Spreading Capacity
200 kg / 441 lb
Applicable Granule Size
1 - 10 mm
Motor
Max. Tension (single motor): 135 kg / 298 lb
Electronic Speed Controller (ESC)
Max. continuous operating current: 300A Max. allowable voltage, 18S lithium battery: 78.3 V
Obstacle Avoidance
Front and rear radar system with 2 sensors, supporting safe avoidance at ≥ 6.6 ft height and ≤ 18 mph speed.
Terrain-Following Radar
1 sensor, supports up to 45° gradient at flight speeds ≤ 4.5 mph
Camera System
FPV wide-angle anti-shake camera, 720p video, night flight lights
Remote Controller
UniRC 7, 7-inch 1080p 1600-nit display, 6 km / 3.7 mi range
Controller Details
2.400 to 2.476 GHz frequency, USB-C charging, 8 to 11 hours duration
Smart Battery
18S series lithium battery, 35,000 mAh capacity, 275 × 120 × 330 mm / 10.8 × 4.7 × 13.0 in, 15 kg / 33 lb, charging temperature -40°C to 65°C.
Smart Fast Charging System
Includes 3 smart chargers with 100V to 240V input, 120A output, and 9000W rated power
Equipment Comparison
2 x M400 Drones + Phiber Drone Trailer
Ground Rig (130') + Support Equipment
AT 502/Thrush 510P + Support Equipment
Startup Cost (with support)
$530 000
$1 500 000
$2 500 000
Acres Per Hour
200 - 250
150
250 - 350
Daily Acres (12 hrs)
2 400 - 3 000
1 800
3 000 - 4 200
Annual Acres (50 days)
120 000 - 150 000
90 000
150 000 - 210 000
Training Required
3 days FREE training @ $0 when purchasing a drone
No Real Training Required / Standard License
1 - 1.5 years Aviation Training, T.C. Certification, Pesticide License @ 175 000
